PAL01 Metal Access Panel (Beaded Frame) – 2 Hour Fire Rating – 30dB – Airtight – Smoke Tested
Fire Rating – 2 Hour
Acoustic Rating – 30dB
Airtight – Yes
Smoke Tested – Yes
Frame – 25mm Beaded Frame Detail
Lock – Budget Lock
Finish – RAL 9010 30% Gloss
Fitting Method – Traditional
Bespoke Product
This product is made bespoke to your exact specification.

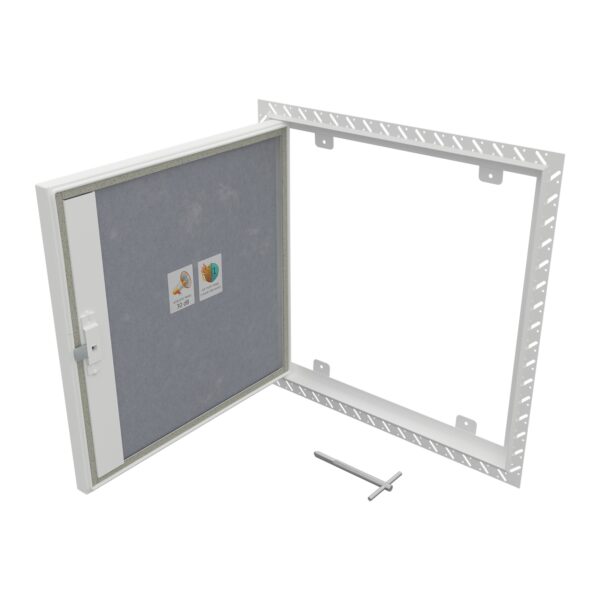

The PAL01 is a dual-purpose panel meaning it is suitable for wall and ceiling applications.
This panel is constructed from 0.9mm zintec steel with a metal-faced panel. This comes as standard with a Budget Locking system, other lock options are available.
This Panel is 2-hour fire rated and has been tested in accordance with BSEN 1634-1: 2008 and BSEN 1363- 1 1999 and has been smoke and airtight tested. This panel also has an acoustic rating of 30dB.

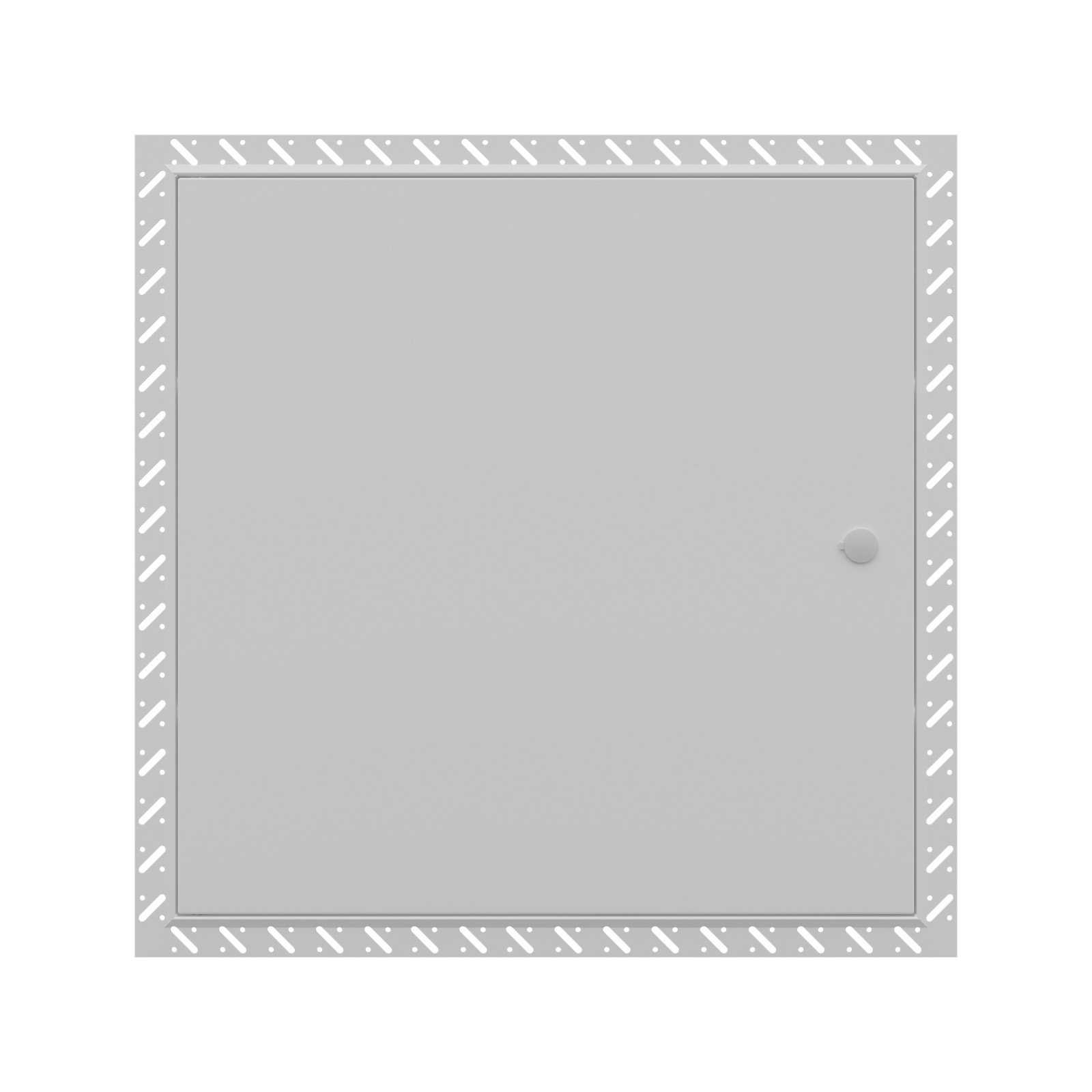

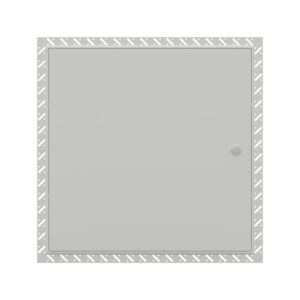

The beaded frame allows for a wet finish (plaster) to be applied for a discrete finish.
