PAL01 Metal Access Panel (Beaded Frame) – No Fire Rating – 30dB

Product Code PAL01-000-MD-BF-BL-30A Categories , , Tag
Walls
Ceilings

Fire Rating – None

Acoustic Rating – 30dB

Frame – 25mm Beaded Frame Detail

Lock – Budget Lock

Finish – RAL 9010 30% Gloss

Fitting Method – Traditional

Bespoke Product

This product is made bespoke to your exact specification.

Bespoke Product

This product is made bespoke to your exact specification.

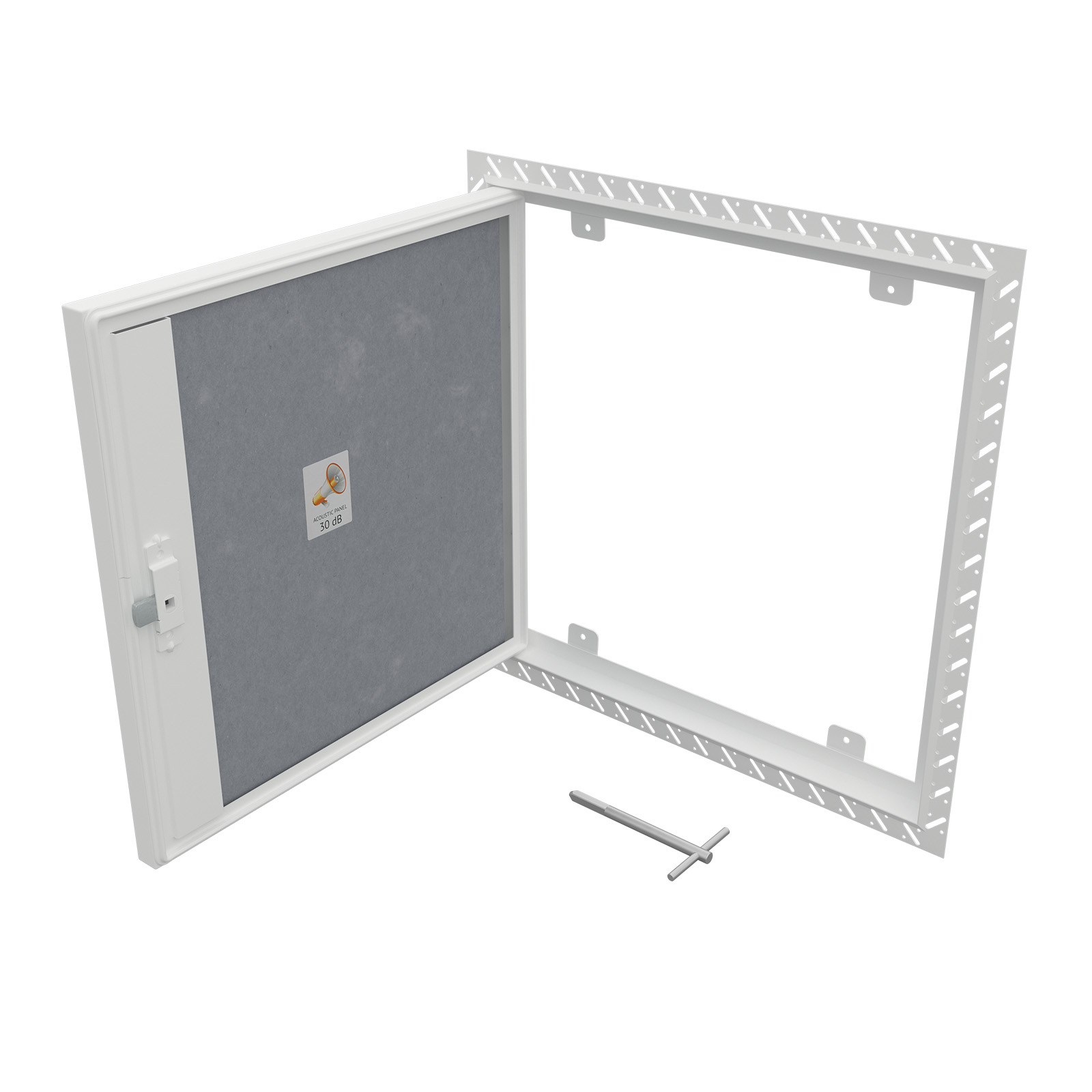

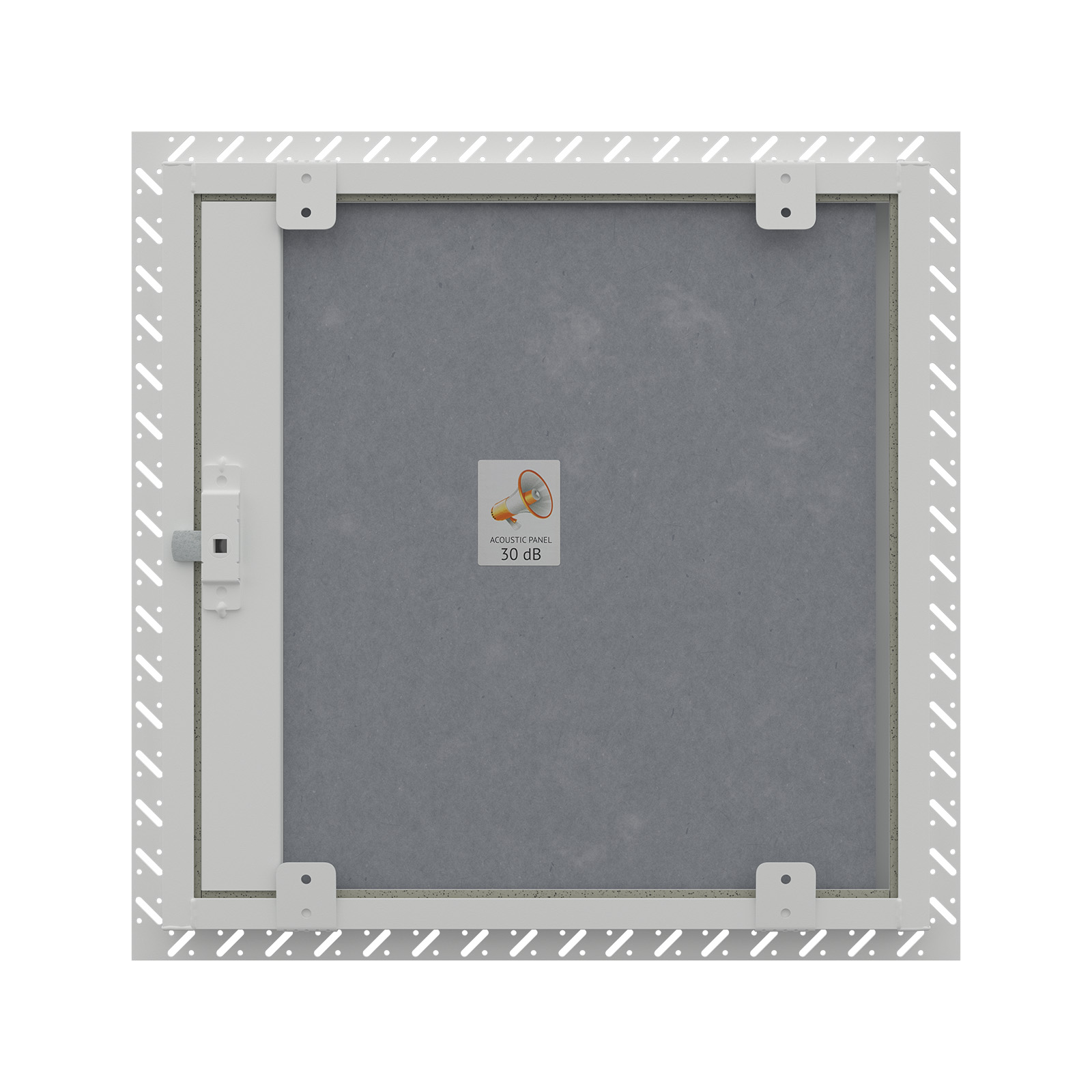

The PAL01 is a dual-purpose panel meaning it is suitable for wall and ceiling applications.

This panel is constructed from 0.9mm zintec steel with a metal-faced panel. This comes as standard with a Budget Locking system, other lock options are available. It is also acoustic rated up to 30dB.

The beaded frame allows for a wet finish (plaster) to be applied for a discrete finish.

Downloads

Datasheet
Acoustic Certificate
Airtight Certificate

Minimum & Maximum Dimensions

All sizes displayed are height x width.

Ceilings

Walls
