Fire Rating – 2 Hour
Frame – 25mm Picture Frame
Lock – Budget Lock
Finish – RAL 9010 30% Gloss
Fitting Method – QuickFit
This product is made bespoke to your exact specification.
This product is made bespoke to your exact specification.

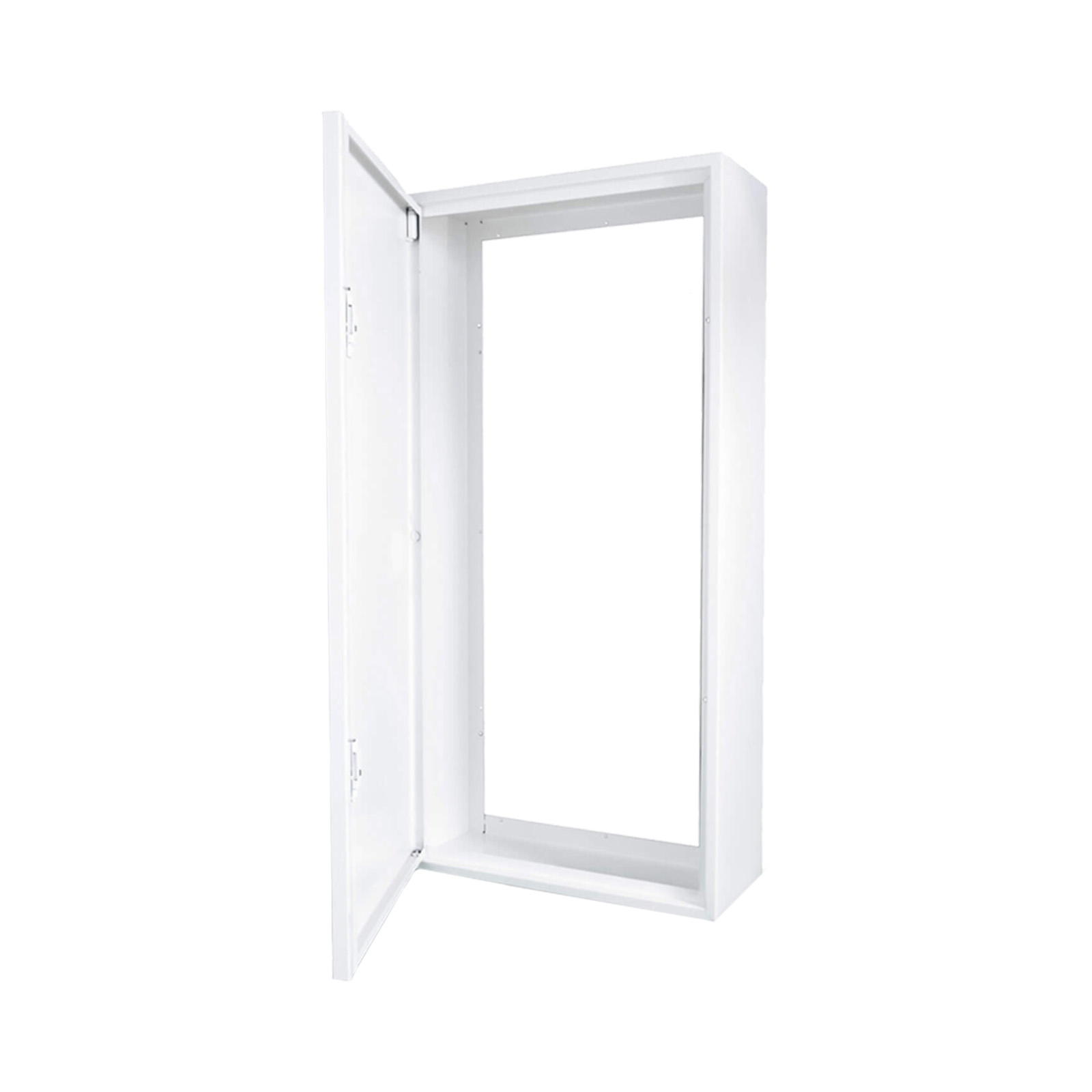

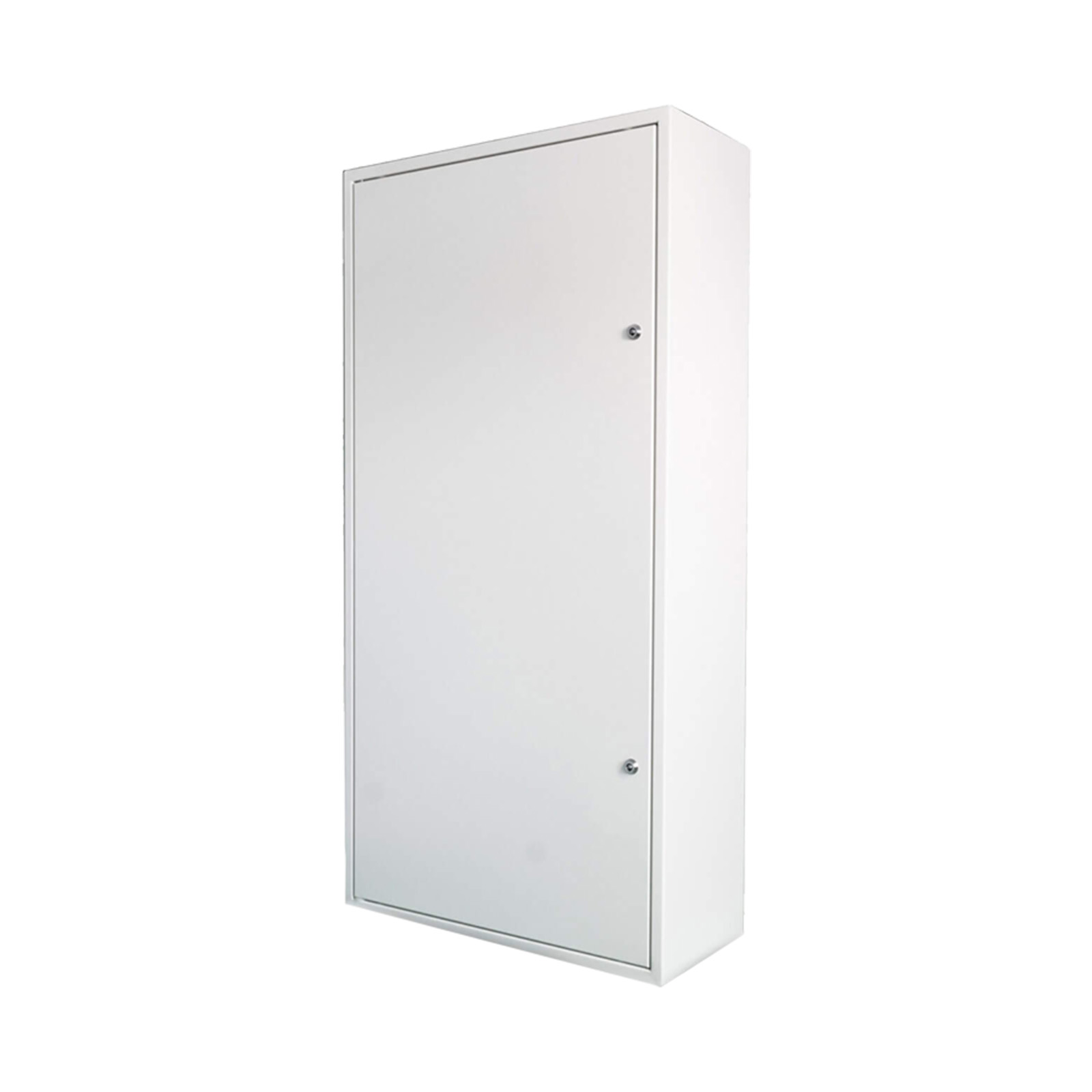

The PAL16 is a Meter Box, it is designed to be surface mounted onto a structural membrane of a block wall system.
This panel is constructed from 0.9mm zintec steel with a budget lock as standard and an 8mm triangular insert as standard but other locks are available.
The Panel is 2 Hour Fire Rated for integrity up to 1070x650mm in a wall application tested in accordance with BSEN 1634-1.
The picture frame will conceal any irregularities in the structural opening allowing for a tidy finish.
Acoustic Rating | None |
---|---|
Airtight Rated | No |
Anti-Ligature | No |
Brand | PALCO |
Door Type | Meter Overbox |
Fire Rating | 2 Hour |
Fitting Style | QuickFit Fitting System |
Frame Type | Picture |
Insulated | No |
Orientation | Walls |
Panel Face | Metal |
Smoke Tested | No |
Suitable Locks | 3 Way Lock, Budget Lock |
To remove the door from the frame; Open the door & release the hinge bolts slightly.
Place the frame on top of the aperture ensuring the aperture is 5mm smaller than the panel size / back of frame opening size.
Fix the frame on top of the aperture using all the fixing holes to secure in place. Ensure frame is square by measuring diagonally & flush to the wall / ceiling. If fire, acoustic or airtight rated apply Intumescent acrylic mastic on the rear of the frame prior to installing the frame.
Refit the door by tightening the hinge pins back in place then close the door. Lock the door in place with key provided & ensure the door is flush when closed.
