PAL51 Metal Riser Door (Beaded Frame) – 2 Hour Fire Rating – 36dB – Smoke Tested – Airtight
Fire Rating – 2 Hour
Acoustic Rating – 36dB
Smoke Tested – Yes
Airtight – Yes
Frame – 25mm Beaded Frame Detail
Lock – 3 Way Lock
Finish – RAL 9010 30% Gloss
Fitting Method – QuickFit
Bespoke Product
This product is made bespoke to your exact specification.

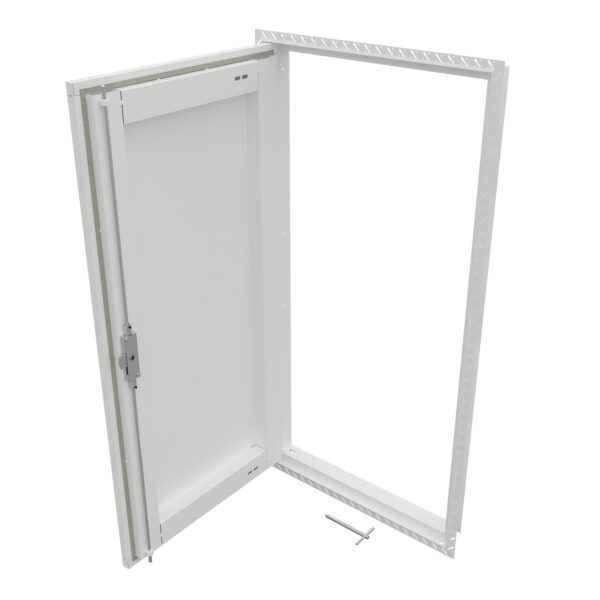

PAL51 is a Riser Door with a QuickFit sliding hinge system that allows for the quick and easy removal of the riser door from the frame. This allows the installation to be completed by a single person.
This riser door is constructed from 0.9mm zintec steel with a metal-faced panel. This panel is smoke tested to BS EN 1634-3 : 2004, and certified to BS EN 1634-1 : 2014 for a 2 hour integrity fire rating. It is certified to BS EN ISO 10140-2 2010 for a 36dB acoustic rating. It is also certified to BS EN 1026 : 2016 for an airtight certification. This comes as standard with a 3 Way Locking system, other lock options are available.
The QuickFit hinge system replaces the full length piano hinge of the conventional riser door which reduces fitting time and costs.
The beaded frame allows for a wet finish (plaster) to be applied for a discrete finish.
